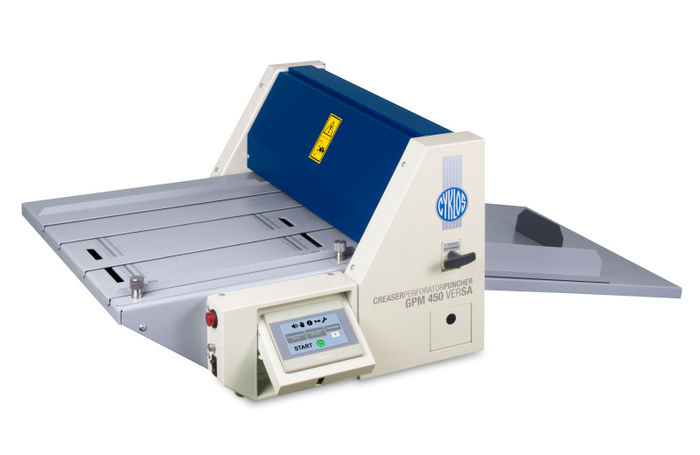

Punching, Creasing & Perforating Machine GPM 450 verSA

The appearance and manual feed system of GPM 450 verSA are derived from GPM 450 SA, yet it copies its larger brother, the GPM 450 Speed, with its easy interchangeability and tool variability or graphical interface. The GPM 450 verSA is a unique product thanks to a combination of the following factors: machine history (directly linked to the highly successful GPM 450 SA), working width (SRA3 in both directions), tool selection (same offer as for GPM 450 Speed and AirSpeed 450) accessibility for everyone, including novice printers. The machine will be appreciated by anyone who "misses something" on the GPM 450 SA, but does not want to invest money or space in large equipment.

Check this PDF to see all available punching tools for GPM 450 verSA.

  • large work table for SRA3 in both directions
  • touch screen display for easy setting of distance and number of creases
  • 15 programs to save and load
  • two widths of creasing channels
  • high-quality anvil perforation
  • fast exchange of tools
  • optional wire punching tool
  • optional calendar punching tool
  • optional Euro Punch tool
  creasing and perforating - pictogram
  punching - pictogram



Parameters (kopie)

MAX. WORKING WIDTH
  450 mm (SRA3 in both directions)
GRAMMAGE
  80 - 400 gsm (creasing, punching), 80 - 250 gsm (perforating)
WIDTH OF CREASE
  CITO 1,0 mm - paper grammage 80 - 200 gsm
iron channel 1,9 mm - paper grammage 200 - 400 gsm
MIN./MAX. DISTANCE BETWEEN CREASES
  1/ 999 mm
NUMBER OF PROGRAMS
  15
SPEED
  1500 sheets A4/ h (1 crease per A4)
DIMENSIONS
  1075 x 635 x 390 mm
PACKING SIZE
  740 x 530 x 675 mm
WEIGHT
  Netto 77 kg, 81 kg
VOLTAGE / FREQUENCY
  230 V/ 50Hz, 110 V/ 60 Hz
CONTENT OF PACKING
  2 x creasing tool, 1 x perforating tool
OPTIONAL TOOLS
  Punching tool – square 5x5 mm, 2:1
Punching tool - square 6x6 mm, 2:1
Punching tool – square 4x4 mm, 3:1
Punching tool – square 4x4 mm, 3:1, calendar punch
Punching tool – round, dia 4 mm, 3:1
Punching tool – round, dia 4 mm, 3:1, calendar punch
Punching tool - oval 5x4 mm (plastic coil)
Euro Punch tool
Microperforating tool
Partial perforating tool
