Creasing - Perforating Machine GPM 450 SA

creasing perforating machine Cyklos GPM 450 SA - pictogram

The semiautomatic creasing – perforating machine with programmable control and working width 450 mm. Manual paper input, paper move provided by motor. Creasing enables high-quality fold of digitally printed paper. By turning the upper (complete) creasing bar behind the perforating one and after turning over the lower combined bar, it is possible to carry out perforation. Waste-free perforation facilitates detaching of paper.

  • Heavy duty metal construction
  • Designed for both creasing and perforating
  • Useful also for creasing laminated documents
  • Up to 5 pre-set application can be stored in programme memory
  • High-quality “anvil” perforation
  • Automatic searching of pre-defined folds (1/2, 1/3, 1/4, book cover)
  • Touch display
  • Three sizes of creasing bars (2 x CITO technology, 1 x iron channel)
  • Large working desktop (up to A2 format)
  • 8 languages (English, German, French, Spanish, Italian, Russian, Greek and Czech)

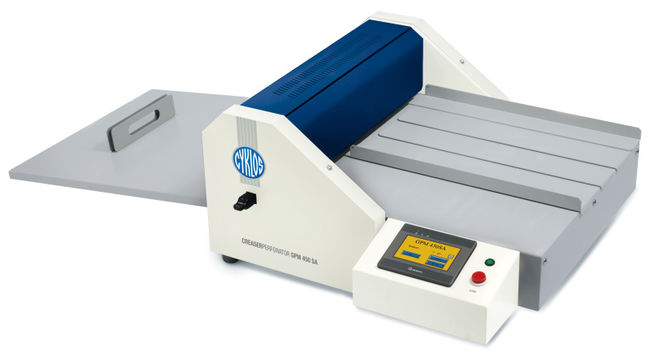

creasing perforating machine Cyklos GPM 450 SA

Parameters

WORKING WIDTH
  100 - 450 mm
(min. length 95 mm)
GRAMMAGE
  80 - 400 g/m2 (creasing), 80 - 250 g/m2 (perforating)
WIDTH OF CREASE
  CITO 1,0 mm - paper thickness < 0,2 mm
(recommended 80 - 150 gsm)
CITO 1,4 mm - paper thickness 0,2 - 0,4 mm
(recommended 160 - 250 gsm)
iron channel - paper thickness 0,4 - 0,5 mm
(recommended 250 - 400 gsm)

MIN./MAX. DISTANCE BETWEEN CREASES
  2/ 1000 mm
PREDEFINED TYPES OF FOLD
  1/2, 1/3, 1/4, book cover
SPEED
  1500 sheets A4/h (1 crease per A4)
DIMENSIONS
  1200 x 640 x 300 mm
PACKING SIZE
  700 x 740 x 400 mm
WEIGHT
  nett 52,5 kg, gross 56 kg
VOLTAGE / FREQUENCY
  230 V/ 50Hz, 110 V / 60Hz

Note: You like this machine but need some faster model with feeder? Try our automatic creasing, perforating and punching machine GPM 450 SPEED!

DON'T MISS OUT!

Recommended accessory - Mobile base MB 70

creasing perforating machine Cyklos GPM 450 SA + mobile base mb 70

The weight of creasing-perforating machine GPM 450 SA is 53 kg. For easier manipulation with the machine we recommend to buy also mobile base MB 70. This mobile table was constructed specially for robust heavy duty Cyklos machines. Loading capacity of MB 70 is 60 kg. Working with our GPM 450 SA you also appreciate two shelves for storage of documents. For more information about this product go to Mobile Base MB 70.
